45mm 9leds Cabochon funfair rgb pixel led lights with pigtails for amusement rides transparent cover

FOB Reference Price:Get Latest Price
$0.87 - $1.29 / Piece | 20 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China, Guangdong, China (Mainland)
Brand Name:
SCOTT
Model Number:
SC-UCS1903-G45-9-12
Emitting Color:
Changeable, RGB
Certification:
CE, RoHS
Lamp Power:
2.5
IP Rating:
IP68
Lamp Body Material:
PC, PVC
CRI (Ra>):
90
Input Voltage(V):
DC12V
Lamp Luminous Flux(lm):
18-20
Working Lifetime(Hour):
30000
Working Temperature(℃):
-20 - 60
Item Type:
Led Point Lights
LED Light Source:
Epistar 5050 SMD LEDs, Epistar 5050 RGB LED Chip
Product Name:
45mm 6-9leds/pcs led
IC type:
UCS1903/UCS2903
Application::
Theme Decorative Lighting
Diameter:
45mm
Controller:
DMX Controller
Lamp Luminous Efficiency(lm/w):
80
Color Temperature(CCT):
Other
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
20pcs/bag
Port
Shenzhen
Lead Time :
3-5days after payment
Product Description
Specification
Item
45mm 6-9leds/pcs led amusement Light
Diameter
45mm
IC Type
UCS1903
Working Voltage
DC12V
Power consumption
1.5-2.5W/piece
Led chip
SMD5050 RGB *9
Wire Length
15cm
PC Cover
Transparent Cover or Milky white Cover
Waterproof
IP68
Working temperature
-40degree to 60dgree
Lifespan
MTBF≥ 50000h
Viewing angle
120 degree
Wire Color
WGB/Transparent
Line color definition
White (12V+)
Green ( DAT)
Blue (12V-)

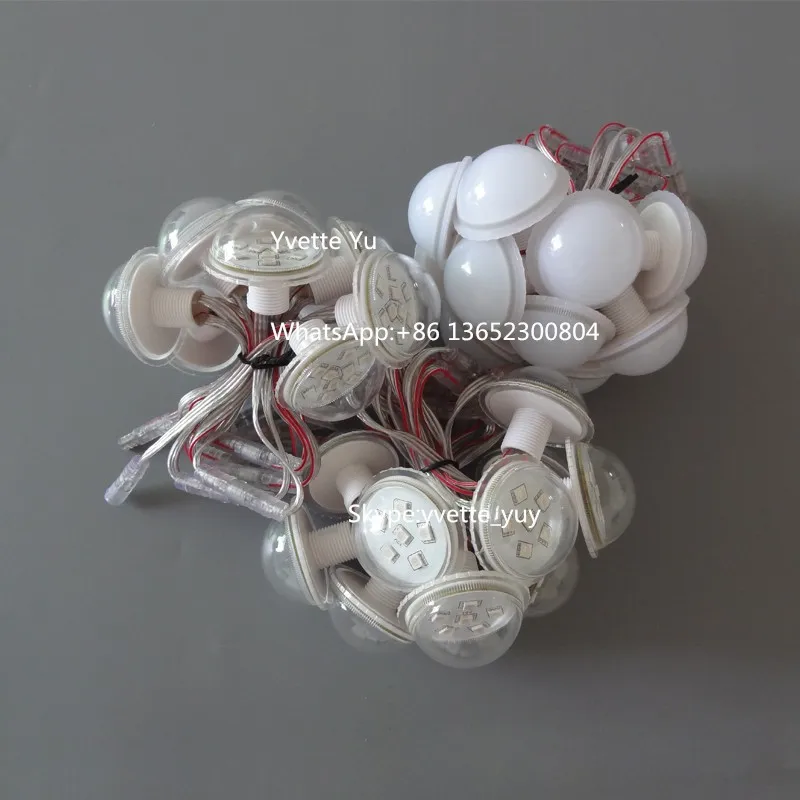

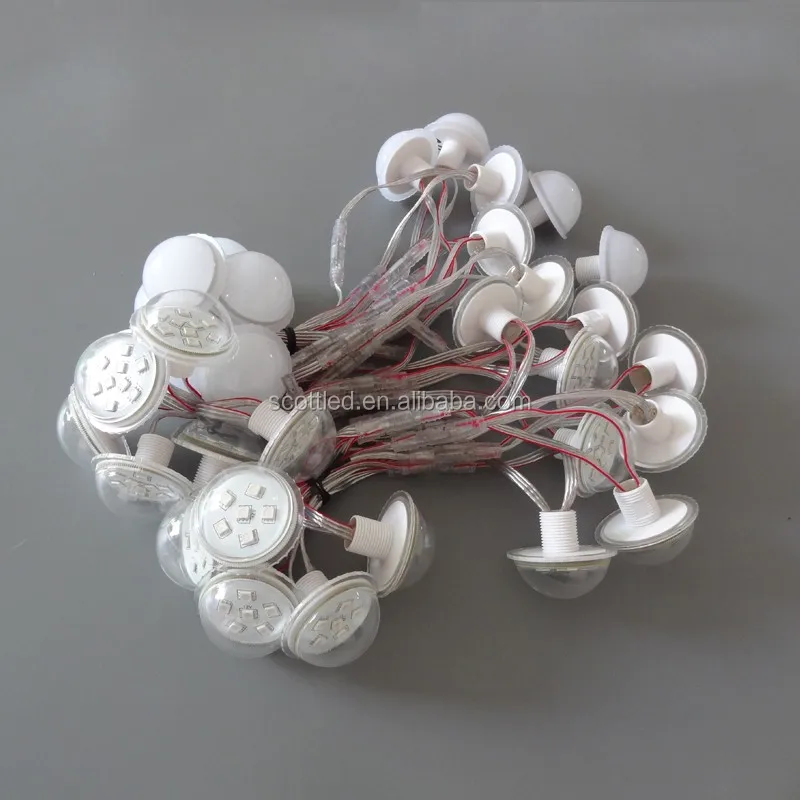

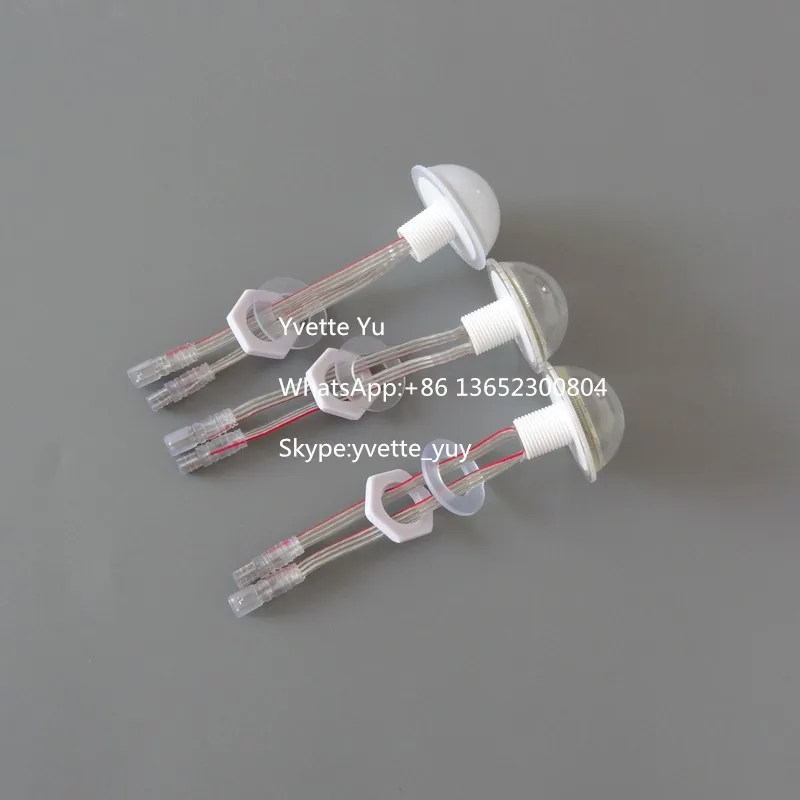

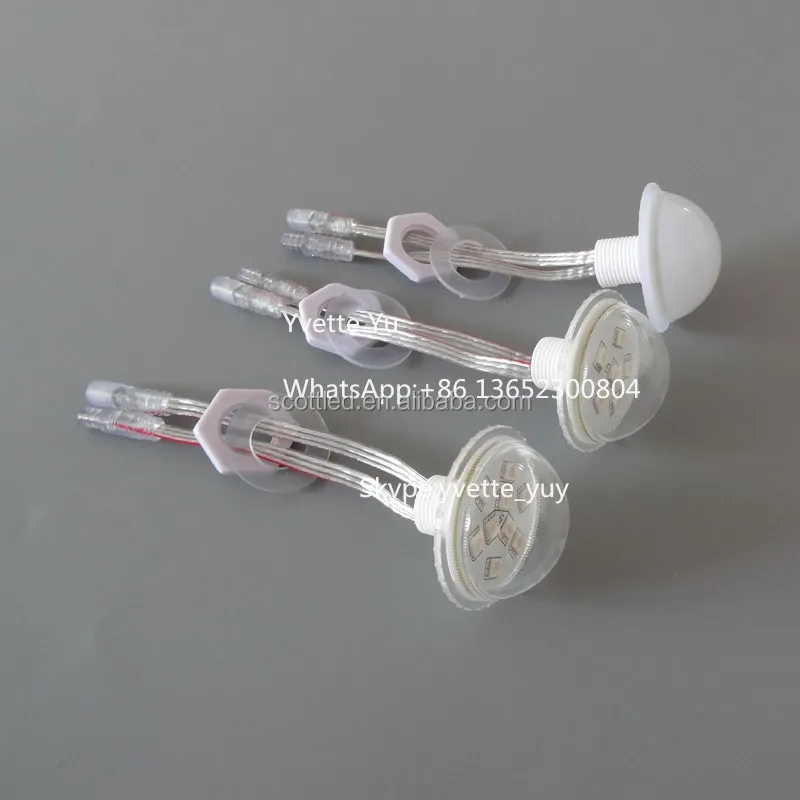

Detailed Images

Advantages

1)For our products, glue inject fully into, so strong waterproof; PU glue sealing,not easy to crack,High protection grade.
2)Our chip IC using Taiwan Epistar chip, with high brightness, lighting color consistency, good color saturation, strong stability, so that our lifetime of pixles will over 35000 hours,
3)Our wire cables and case are using antu-cold, anti UV, flameresistant, can be used in outdoor for long time.
4)These products are made by SMD5050 RGB high brightness LED, with big view angle.
5)With special snap joint construction, suitable for all kind of board. Directly to install after dig the holes,installation is easy and quickly, very convenient.

Features

1. Low wattage, energy efficient and major reduction in power costs
2. Virtually no maintenance
3. Low heat, high brightness, and works well under harsh conditions
4. Including Circle nuts for convenient mounting
5. Full range of colors: Red, yellow, blue, green, and white
6. Input voltage: 12V DC, professionally designed to be fully waterproof
7. IP 66 protection degree can be normally operated even in cloudy, rainy and snowy weather
8. Solid-state, high shock or vibration resistant
9. No RF interference
10. Long life 50, 000hours
