WS2811 pixel rgb smd led; 3pcs 5050 SMD RGB LED with 1pcs WS2811 IC and optical lens,DC12V,20pcs a string

FOB Reference Price:Get Latest Price
$0.61 - $0.81 / Piece | 20 Piece/Pieces 20pcs/string (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Place of Origin:
Guangdong, China
Brand Name:
SCOTT
Model Number:
SC-WS2811-D30-12-Cnvlen
Power:
0.9W/pcs
Certification:
CE, RoHS
Chip Material:
AlGaInP
Emitting Color:
digital full color
Power Dissipation:
18W
Operating Temperature(℃):
-20 - 80
Storage Temperature(℃):
-20 - 80
Viewing Angle(°):
120
Product Name:
WS2811 pixel rgb smd led
IC Type:
WS2811 chip
SMD Type:
5050 SMD
LED Number:
3pcs LEDs per module
Module Number:
20pcs module per string
Work Voltage:
DC12V input
Diameter:
30mm
IP Grade:
Waterproof IP67
Wire Cable length:
12cm for each module
Conver Characteristic:
convex lens transparent conver
Supply Ability
Supply Ability:
50000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
20pcs/string,8strings/bag
Port
Shenzhen
Lead Time :
3~7days

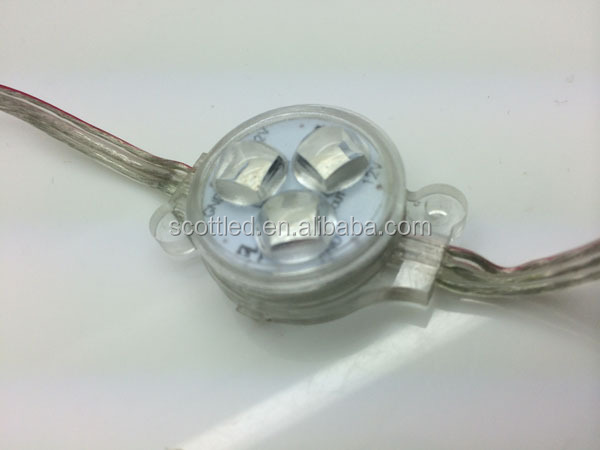

WS2811 pixel rgb smd led; 3pcs 5050 SMD RGB LED with 1pcs WS2811 IC and optical lens,DC12V,20pcs a string

Specification:

Diameter:30mm

IC Type:WS2811

SMD Type:5050SMD

Work Voltage:DC12V input

LED Number:3pcs 5050 SMD RGB LEDs per module

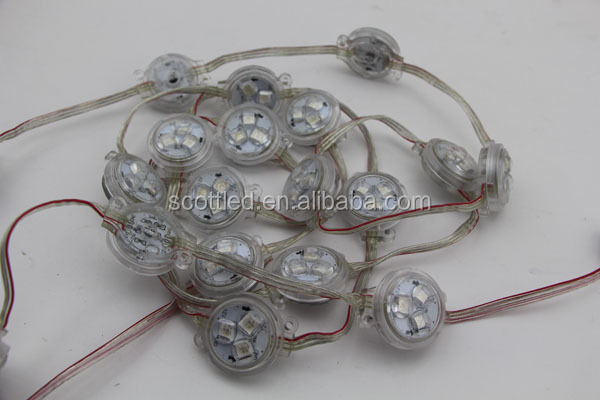

Module Number: 20pcs module per string

Wire cable length:12cm wire length for each module

Conver Characteristic: convex lens transparent conver

Waterproof level:Waterproof IP67

Warranty: 2years

Certification: CE & ROHS



Needful led Controller:

LED Pixel Controller are both ok.

Such as T-1000B,T-1000S,T-100K,T-200K,T-300K and so on.



Wire Connect method:

There are only three wire cable for the light.

Positive Pole: The first wire which one is red and white cable.

DAT:  The second wire which is in the middle.

GND: The third wire.



Other Characteristic:

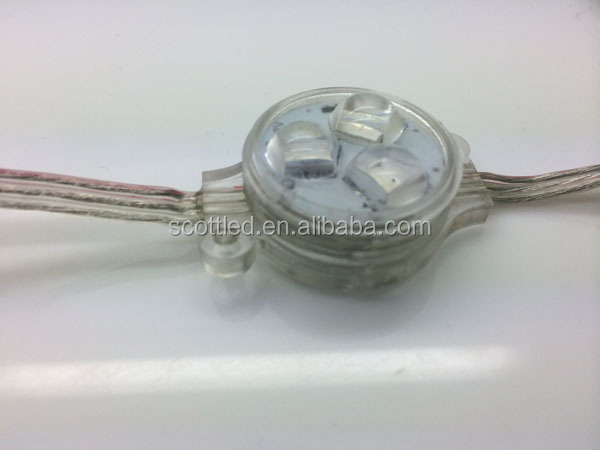

1. convex lens transparent conver

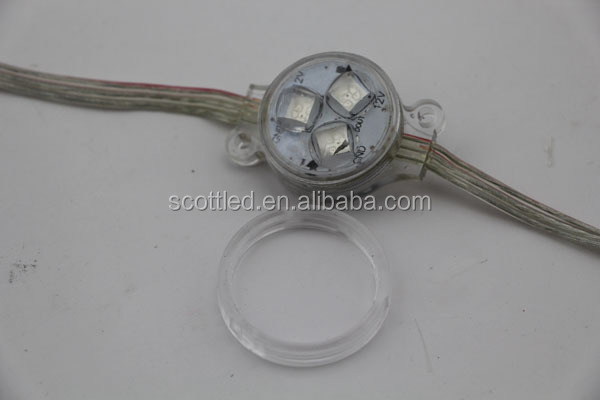

2. with 1pcs transparent ring for each module

3. Good quality wire cable

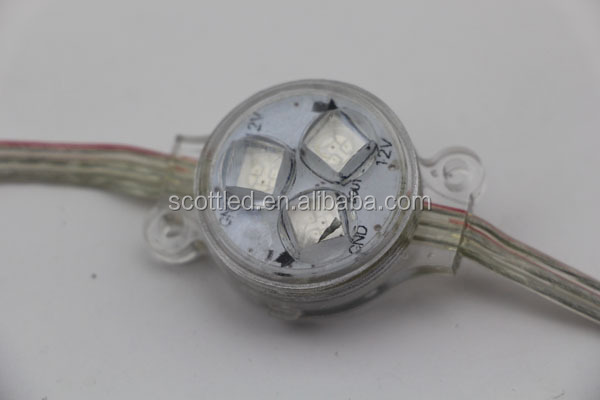

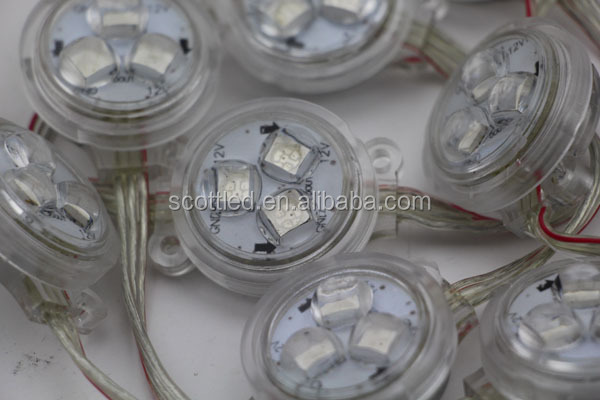

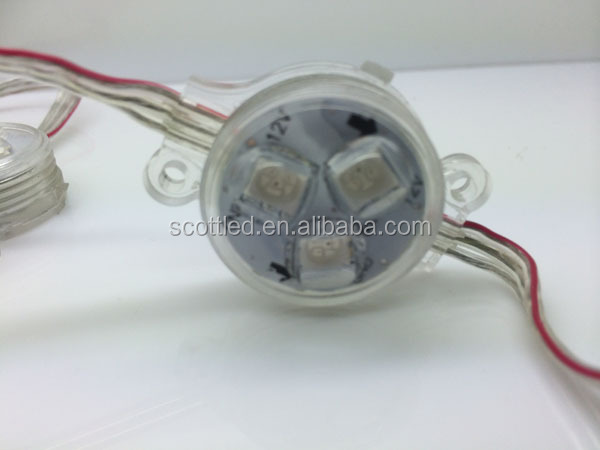

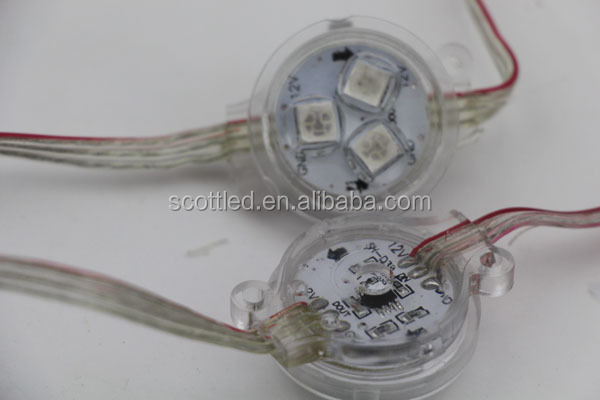

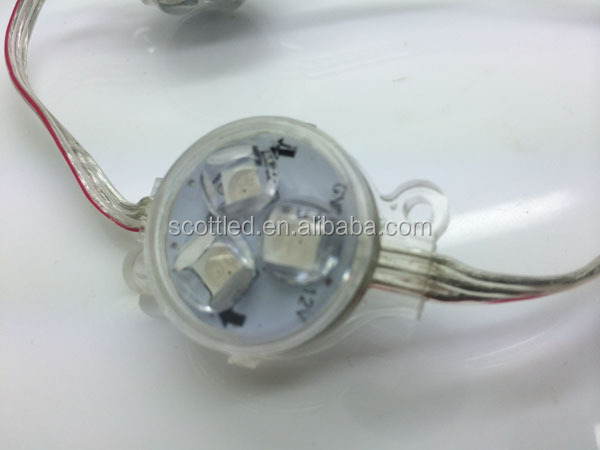

Product Appreciation:

IMG_8868.JPGIMG_8873.JPGIMG_8878.JPGIMG_8879.JPGIMG_8871.JPGIMG_2599.jpgIMG_2600.jpgIMG_2601.jpgIMG_2602.jpgIMG_2603.jpg
