CE ROHS Certificate addressable magic digital pixe rgb led pixel strip ws2801

FOB Reference Price:Get Latest Price
$7.60 - $8.80 / Meter | 5 Meter/Meters WS2801 digital led strip 5m/roll (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SCOTT
Model Number:
SC-WS2801-32-5
Light Source:
LED
Certification:
CCC, CE, EMC, RoHS
Lamp Power:
48
Lamp Body Material:
PVC
Type:
Flex LED Strips
CRI (Ra>):
72
Input Voltage(V):
DC5V
Working Lifetime(Hour):
50000
Working Temperature(℃):
-20 - 60
Product Name:
magic digital pixe rgb led pixel strip ws2801
IC Type:
WS2801
LED Type:
5050 SMD RGB LED
Work Voltage:
DC5V input
LED QTY:
32LEDs/m,160LEDs/roll
IC QTY:
32ic/m,160IC/roll
Strip Length:
5m/roll
PCB Color:
Black PCB
IP Grade:
non-waterproof IP20
MOQ:
one reel
Item Type:
Light Strips
Color Temperature(CCT):
rgb
LED Light Source:
Epistar
Emitting Color:
digital full color
Supply Ability
Supply Ability:
50000 Meter/Meters per Day WS2801 digital led strip
Packaging & Delivery
Packaging Details
WS2801 digital led strip:
5m/roll, 1roll/antistatic bag
Port
Shenzhen
Lead Time :
3~7days

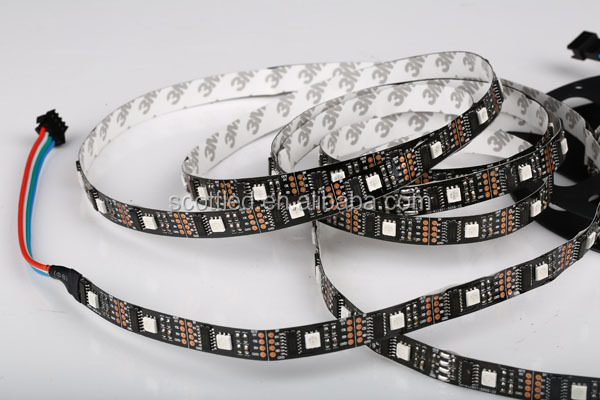

magic digital pixe rgb led pixel strip ws2801 , 5m/roll,WS2801 IC(256 scale,8 bit), 32pcs 5050 RGB leds/m,non-waterproof IP20,DC5V,White PCB



Specification:

ItemsParameter
IC TypeWS2801
LED Type5050 SMD RGB LED
Work VoltageDC5V
LED Number32pcs 5050 SMD RGB LED each meter, 160LEDs/roll
IC Number32pcs WS2801 IC per meter, 160IC/roll
Strip Length5m/roll
Grey Scale256
PCB wide12mm
PCB ColorBlack PCB
IP Gradenon-waterproof IP20
Power9.6W/m, 48W/roll
Cuttable every LED+IC can cut  ( 1LEDs/cut )
Temperature-40-60°C
lifespan50000hours
View angle120°C



Advantage

1. Gold Supplier, good service and competitive price .
2. Good high brightness SMD5050 LED.
3. Low voltage for human safety ,energy-saving .
4. Soft and flexible strip ,Waterproof, non-waterproof both can do and durable .
5. On any surface can be any shape,of widly applicability, easy to install and maintain .
6. Environmental friendly: Low carbon,no radiation, no flicker,and no harm to human and environment.

7. Cuttable every LED+IC along the mark,1led/cut

8. Every 3LEDs individually controlled

9. Can show customized effects

10. Support online control

11. Long lifetime for 50,000hrs

12. CE and RoHS approved

13. 2years warranty



Items for different waterproof grade

IP Grade

White PCB

Black PCB

IP20

 SC-WS2801-32-5-WT-IP20

 SC-WS2801-32-5-BK-IP20

IP65

 SC-WS2801-32-5-WT-IP65

 SC-WS2801-32-5-BK-IP65

IP67

 SC-WS2801-32-5-WT-IP67

 SC-WS2801-32-5-BK-IP67

IP68

 SC-WS2801-32-5-WT-IP68

 SC-WS2801-32-5-BK-IP68

IP20: Non waterproof, 3M backside
IP65: Glue drop on the front side, 3M tape backside
IP67: Silicone tube protection
IP68: PVC tube+glue




Notice:

1. Please use DC5V only;
2.There are direction arrows on the PCB, arrow direction for connecting next reel strip;
3.GND not only for power wire, also as signal wire, need connect to both power and controller;
4.The Max distance between strips is 5m-10m, need use amplifier when more than 10m;
5.Every 5m strip need re-connect to power supplier, avoiding voltage drop;
6.Keep the surface of installation place clear and smooth, avoiding the strip fall off. DO NOT press the LED;
7.DO NOT attempt to make sharp bend with the strip;
8.DO NOT install where water or high humidity may be present without further protection;
9.Away from strong acid or strong alkali.




Application:

1) Building decoration
2) Car decoration

3) Amusement park and theater lighting

4) Emergency hallway lighting

5) Shopping mall, restaurant, hotel, meeting roomand advertisement lighting and decoration
