DC5V dmx led pixel light diameter digital RGB led pixels

FOB Reference Price:Get Latest Price
$0.32 - $0.33 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Place of Origin:
Guangdong, China
Brand Name:
SCOTT
Model Number:
SC-DMX512-50-5-R
Power:
15W
Color Temperature:
other
Certification:
CE, RoHS
Chip Material:
AlGaInP
Emitting Color:
digital color
Luminous Intensity:
High Bright
Power Dissipation:
15W/string
Color Rendering Index(Ra):
72
Luminous Flux(lm):
20-22lm
Optical Attenuation(%):
0.1
Operating Temperature(℃):
-20 - 60
Storage Temperature(℃):
-20 - 60
Viewing Angle(°):
180
Product Name:
DMX LED Pixel Module String light
Color:
digital full dream color
Work Voltage:
DC5V input
IP Grade:
Waterproof IP68
LED Number:
50LEDs/string
Shape:
Round shape
MOQ:
50pcs(one string)
Supply Ability
Supply Ability:
5000000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
50pcs/string
Port
ShenZhen/HongKong
Lead Time :
5-7 Working Days
Product Description

Parameters:


● Model Number: SC-DMX512-50-5-R

● Chip Material: AlGaInP

● Emitting Color: digital full color

● Work Voltage DC5V input


● Power: 15W/string

● Viewing Angle(°): 180

● Color Rendering Index(Ra): 72

● Operating Temperature(℃): -20 - 60


● Brand Name: SCOTT

● Certification: CE, RoHS

● Product Name: DMX LED Pixel Module String light

● IP Grade: Waterproof IP68

● LED Number: 50LEDs/string


● Red Wire: DC5V input +;

White wire: DAT;

Green Wire: CLK;

Blue: GND


input side: is the side with IC

RGB Pixels are digitally-controllable lights you can set to any color, or animate. Each RGB LED and controller chip is molded into a 'dot' of silicone. The dots are waterproof and rugged. There are four flanges molded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick. They're typically used to make outdoor signs

The pixels use 8mm diffused RGB LEDs, with a 120 degree beam width. The total max brightness of all LEDs is about 1600mcd but with the light more evenly distributed & mixed than a clear LED

12mm diameter (0.45") 75mm deep (1.5")

100mm

50 pieces per strand

These pixels use a dmx512 chip for full 24 bit color

5V power, 60mA maximum per pixel (LED on full white)

2-pin SPI-like protocol

dmx512 Datasheet for the chip inside each pixel

Brightness: Red = 3.3 Lumens/300 mcd, Green = 10 Lumens/1000 mcd, Blue = 2.7 Lumens/300 mcd (mcd calculation based on full 120 degree beam)

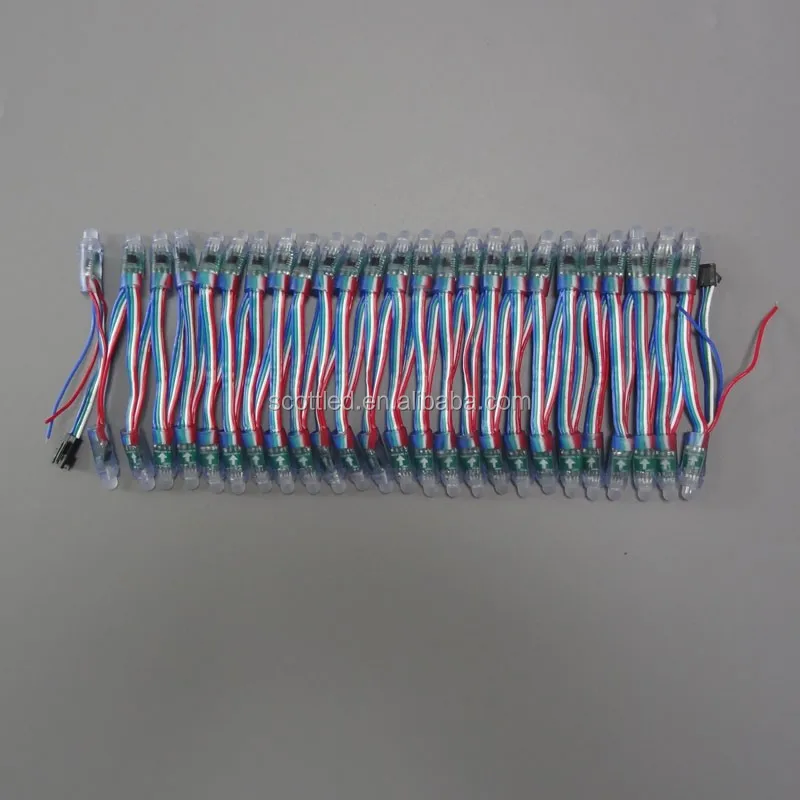

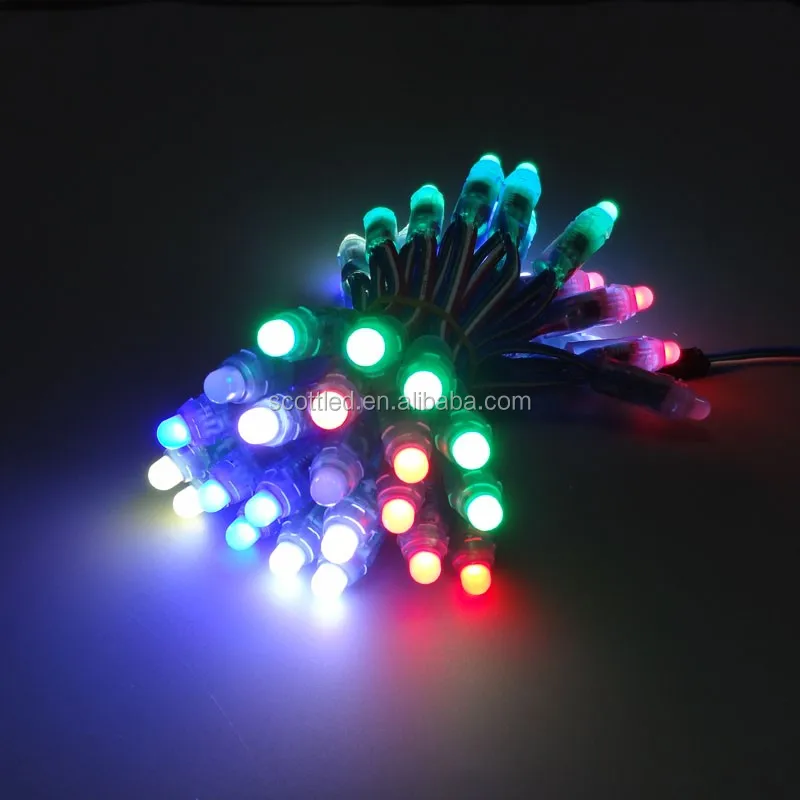

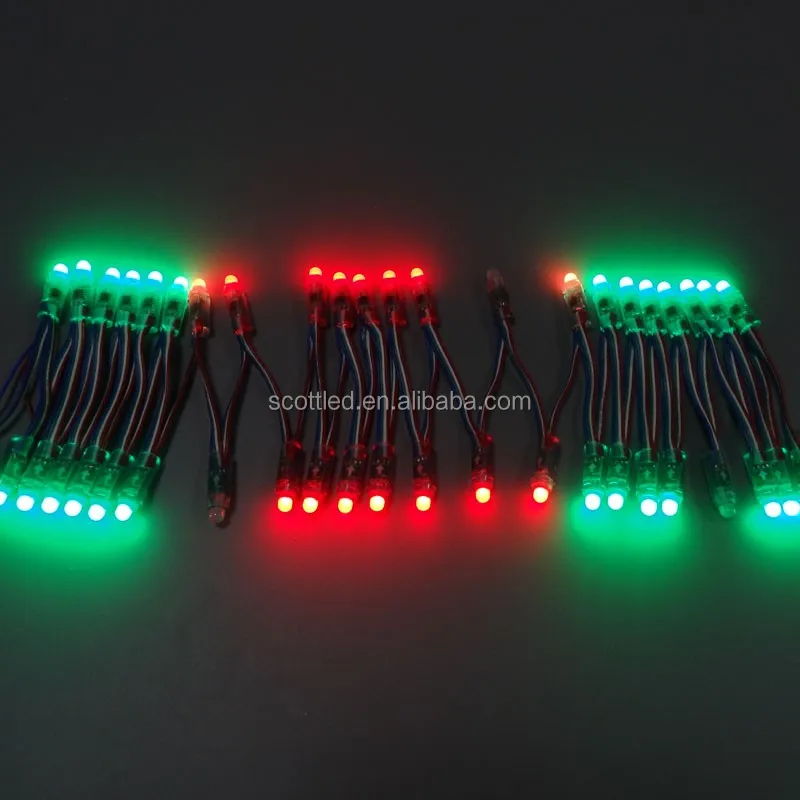

Detailed Images
