ink1003 Led Pixel Strip with 60 leds Per Meter

FOB Reference Price:Get Latest Price
$12.06 - $12.26 / Meter | 5 Meter/Meters 5m/reel (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SCOTT
Model Number:
SC-INK1003-60-12
Light Source:
LED
Certification:
CCC, CE, EMC, RoHS
Lamp Power:
90W
Lamp Body Material:
PVC
Type:
Flex LED Strips
Input Voltage(V):
12V
Working Lifetime(Hour):
50000
Working Temperature(℃):
-20 - 60
Product Name:
INK1003 LED Digital Strip
IC Type:
INK1003
Work Voltage:
DC12V input
LED Number:
60LEDs/m
IC Number:
60IC/m
Strip Length:
5M/reel
PCB Color:
Black PCB
IP Grade:
Waterproof silicon tube IP67
MOQ:
5Meters(one reel)
Warranty:
2years
Item Type:
Light Strips
Emitting Color:
Changeable
LED Light Source:
Epistar
Supply Ability
Supply Ability:
50000 Meter/Meters per Day
Packaging & Delivery
Packaging Details
5m/reel,1reel/bag
Port
shenzhen
Lead Time :
1~3days

INK1003 LED Digital Strip;60leds/m;5m/reel;DC12V input;with 60pcs 5050 RGB Chip;60pixels/m;waterproof IP67;Black PCB

Parameter
Voltage: DC12V
IC type: INK1003

IC quantity: 60pcs/meter
LED type: SMD5050 RGB
LED quantity: 60pcs/meter
Pixel: 60pcs/meter
Max power: 18W/meter
Grey scale: 256
Size: 5000x12x3mm

PCB color:Black

IP Grade:waterproof silicon tube IP67



Advantage
High brightness SMD5050 LED
Cuttable every LED+IC along the mark
Each LED individually controlled
Can show customized effects
Support online control
No ultraviolet and infrared radiation
Energy saving
Low heat-release
Long lifetime for 50,000hrs
CE and RoHS approved



Items for different waterproof

IP grade

White PCB

Black PCB

IP20

SC-INK1003-60-12-IP20-W

SC-INK1003-60-12-IP20-B

IP65

SC-INK1003-60-12-IP65-W

SC-INK1003-60-12-IP65-B

IP67

SC-INK1003-60-12-IP67-W

SC-INK1003-60-12-IP67-B

IP68

SC-INK1003-60-12-IP68-W

SC-INK1003-60-12-IP68-B

IP20: Non waterproof, 3M backside
IP65: Glue drop on the front side, 3M tape backside
IP67: Silicone tube protection
IP68: PVC tube+glue

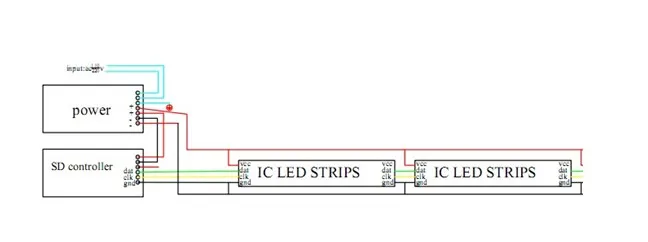

Connection Diagram


Notice:

1. Please use DC5V only;
2. There are direction arrows on the PCB, arrow direction for connecting next reel strip;
3. GND not only for power wire, also as signal wire, need connect to both power and controller;
4. The Max distance between strips is 5m-10m, need use amplifier when more than 10m;
5. Every 5m strip need re-connect to power supplier, avoiding voltage drop;
6. Keep the surface of installation place clear and smooth, avoiding the strip fall off. DO NOT press the LED;
7. DO NOT attempt to make sharp bend with the strip;
8. DO NOT install where water or high humidity may be present without further protection;
9. Away from strong acid or strong alkali.

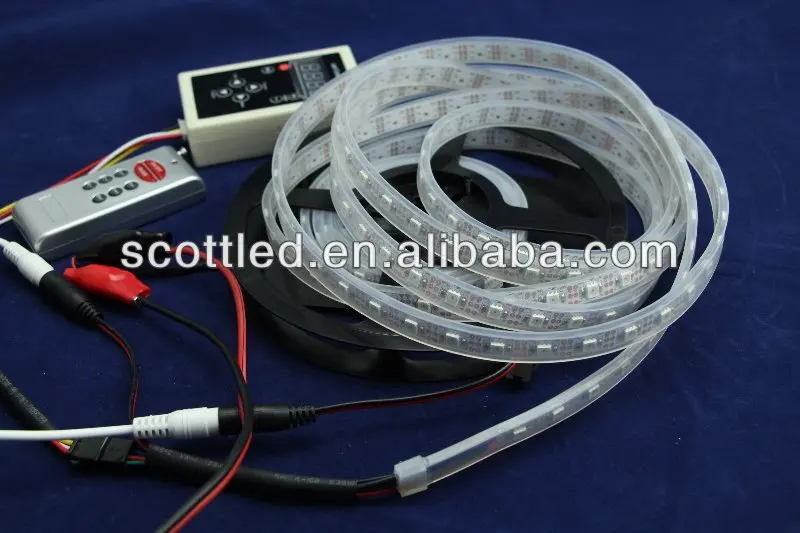

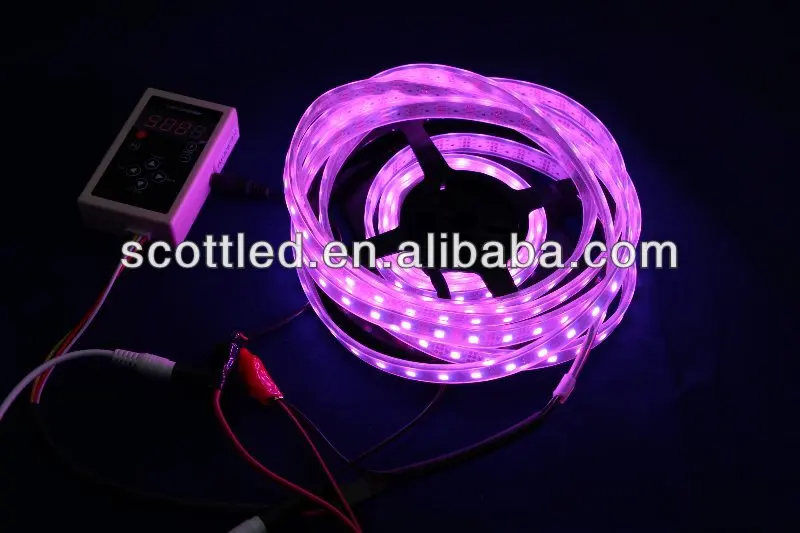

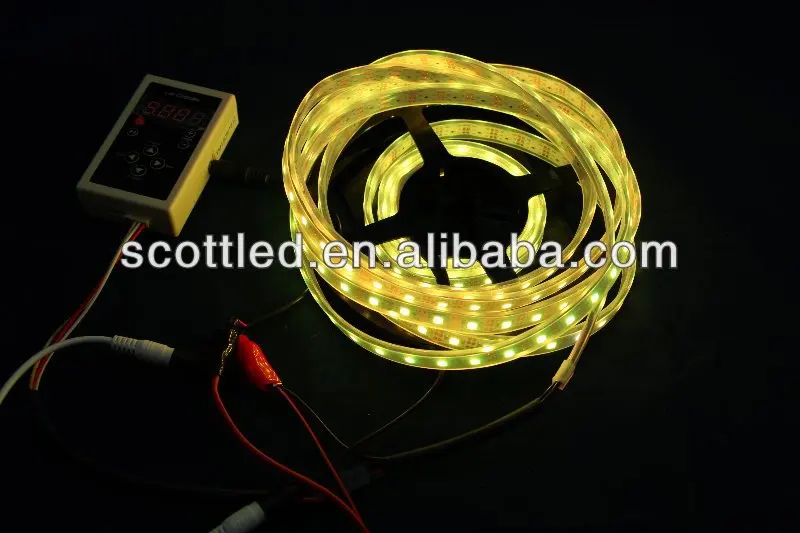

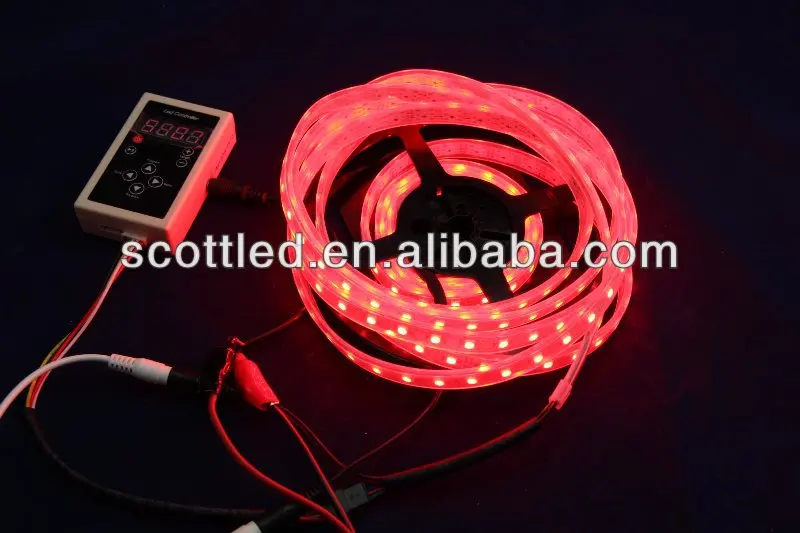

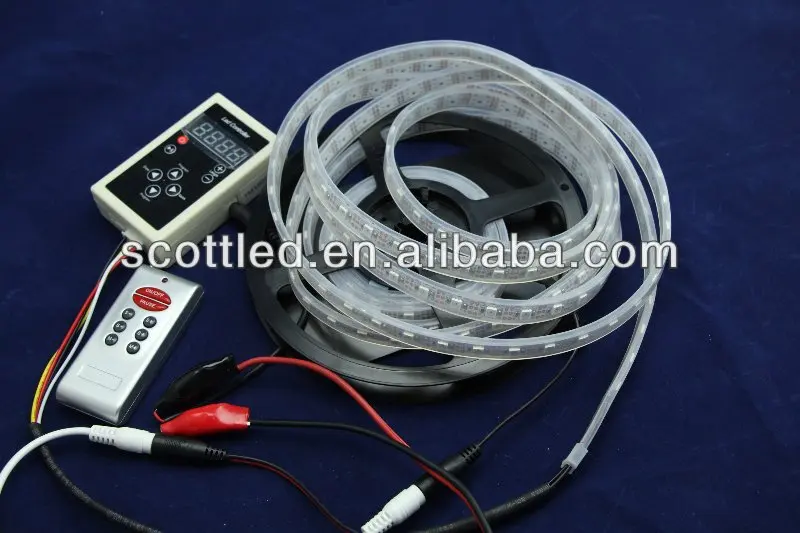

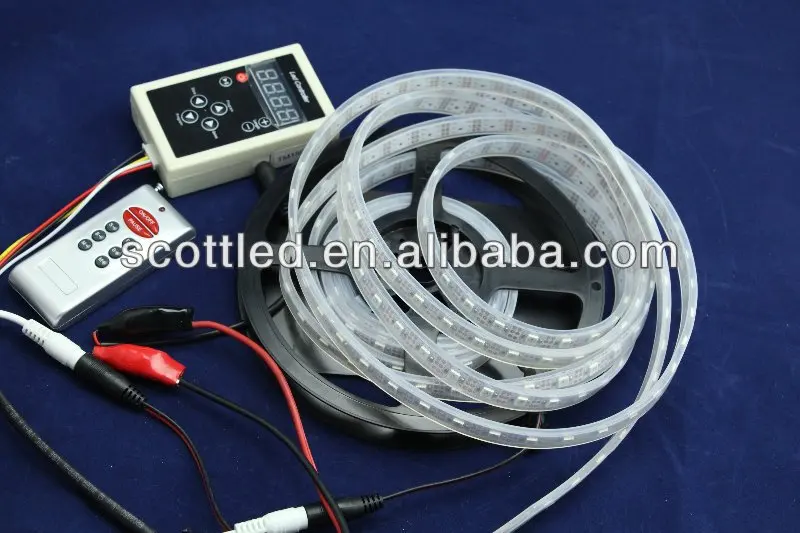

Product Appreciation
